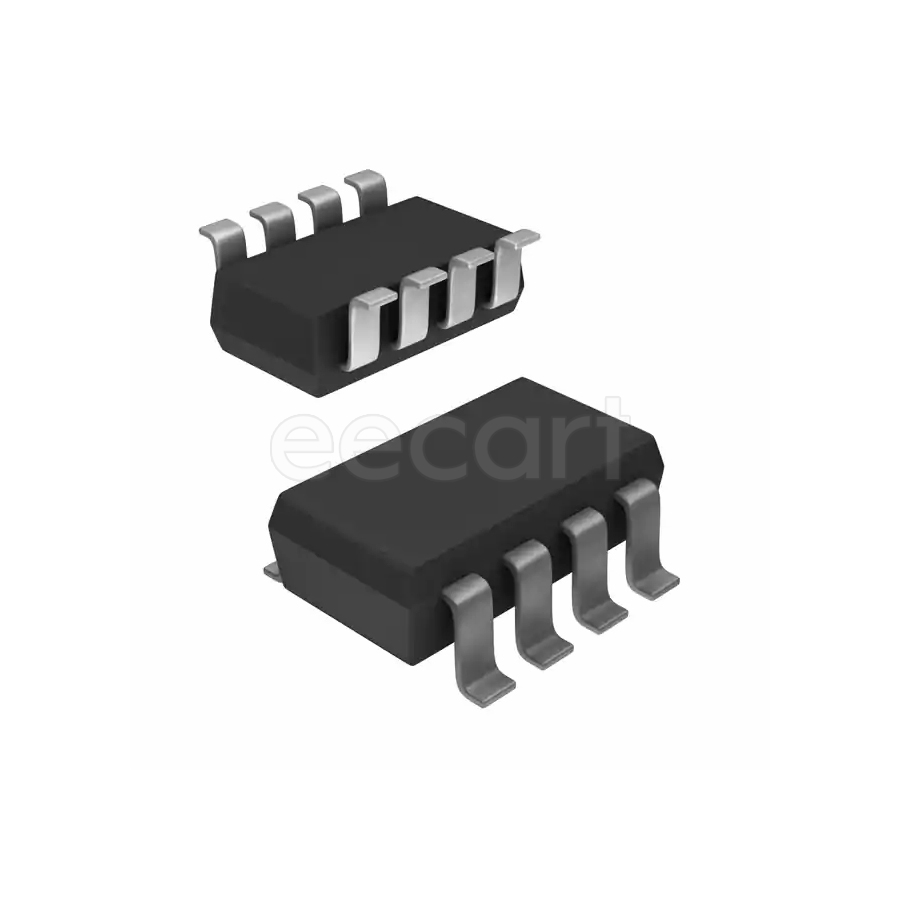

ZDT6790TA
Manufacturer:
Diodes Incorporated
Mfr.Part #:
ZDT6790TA
Datasheet:
Description:
BJTs SM8 SMD/SMT NPN, PNP 2.75 W Collector Base Voltage (VCBO):45 V Collector Emitter Voltage (VCEO):500 mV Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Length | 6.7 mm |
| Width | 3.7 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1.6 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN, PNP |
| REACH SVHC | No SVHC |
| Frequency | 150 MHz |
| Number of Elements | 2 |
| Current Rating | 2 A |
| Max Power Dissipation | 2.75 W |
| Power Dissipation | 2.75 W |
| Max Collector Current | 2 A |
| Collector Emitter Breakdown Voltage | 40 V |
| Transition Frequency | 100 MHz |
| Turn-On Delay Time | 33 ns |
| Turn-Off Delay Time | 1.3 µs |
| Continuous Collector Current | 2 A |
| Element Configuration | Dual |
| Max Frequency | 150 MHz |
| Collector Emitter Voltage (VCEO) | 500 mV |
| Max Breakdown Voltage | 40 V |
| Gain Bandwidth Product | 150 MHz |
| Collector Base Voltage (VCBO) | 45 V |
| Collector Emitter Saturation Voltage | 500 mV |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 150 |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | NPN, PNP |
Stock: 563
Distributors
pcbx
pcbxUnit Price$0.67402
Ext.Price$0.67402
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67402 | $0.67402 |
| 10 | $0.54528 | $5.45280 |
| 25 | $0.50019 | $12.50475 |
| 50 | $0.45883 | $22.94150 |
| 100 | $0.42088 | $42.08800 |
| 300 | $0.37903 | $113.70900 |
| 500 | $0.34134 | $170.67000 |
| 1000 | $0.32136 | $321.36000 |
